Hydraulic Calf Chute

https://livestockequipment.ca/web/image/product.template/4967/image_1920?unique=7a8d2d8

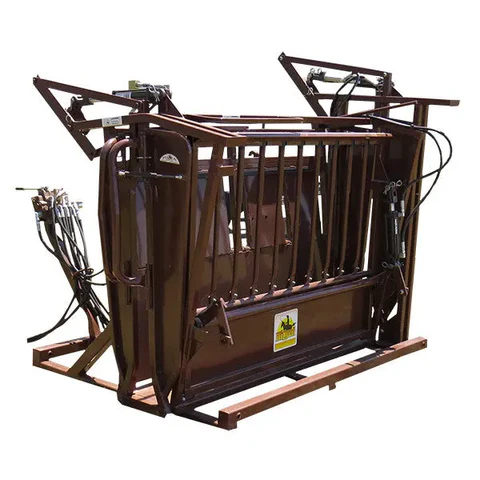

The Hydraulic Calf Chute also serves as a tipping table for working calves. Hydraulic Squeeze and Headgate, along with spring-loaded drop-down fold-away bars to access the calf when in tipping position.

Drop-down doors for access to the calf when in the regular stand-up chute position. A hydraulically operated scissor-style tailgate prevents the calf from entering when in the alley.

Controls orientation is from the cow's point of view when they are in the chute.

NOTE: Hydraulic Power Unit NOT INCLUDED.

$ 22,516.21 22516.21 CAD $ 22,516.21

There is no price entered for this item yet. Please contact us for more information.

  • SELECT AN OPTION

This combination does not exist.

Contact Us
SKU
 SHQHYCFCHT-RH



SHIPPING AND DELIVERY INFORMATION​
Delivery costs are calculated in the cart section after you enter your address. In-stock items being delivered by courier are processed within 3 days. Delivery of larger In-Stock items could take up to two weeks. Our shipping department will call you to schedule the delivery.

  • Scissor style tailgate is easy to operate and provides much better control than traditional guillotine gates.
  • Neck extender hold tension with gas filled struts.

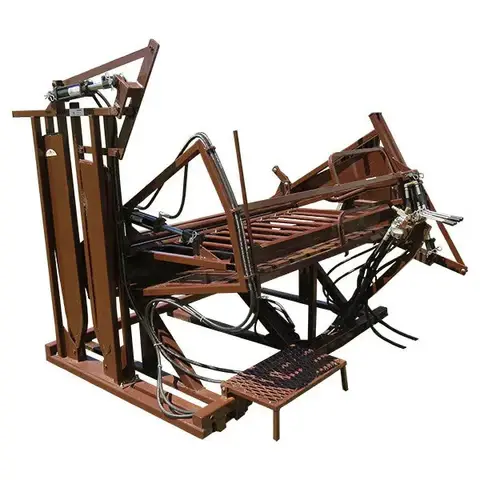

  • Complete chute tilts with hydraulics to 78 degrees, allowing some gravity to be used for weight to be at the bottom of the chute.
  • High-tensile, 58,000 psi tubular steel.

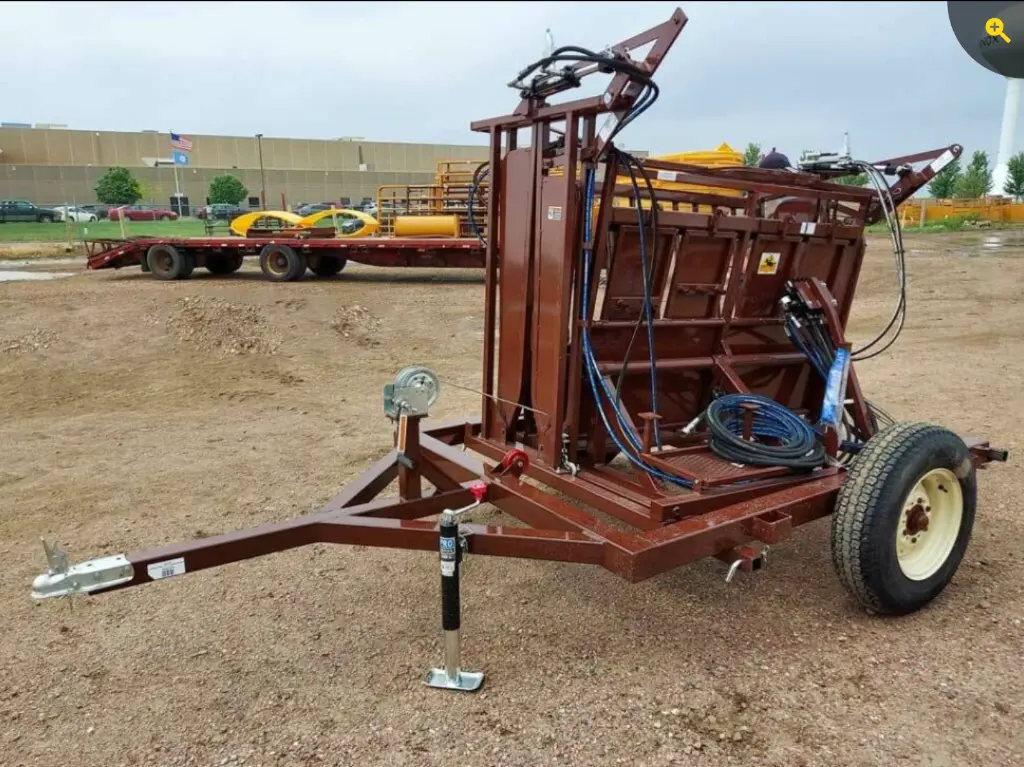

  • Optional trailer kit available.
  • Can accommodate up to 800 lbs. calves.
  • 25' of hydraulic hose for use with any type of power pack.
  • Hydraulic controls fold away for ease of transport and storage.
  • Table side has 4 fold down doors for access to calf when in chute position.
  • Working side of the chute has spring loaded bars for ease of access to the calf.
  • Powder coated HiQual brown or Sioux Steel Victory gold color.

Specifications:

  • Exterior Dimensions: 7’2”L x 4’7”W x 5’11”H 6’5”W w/hyd controls out
  • Squeeze Width: At floor: 10” wide. At Top Bar: 1” Min. – 25” max
